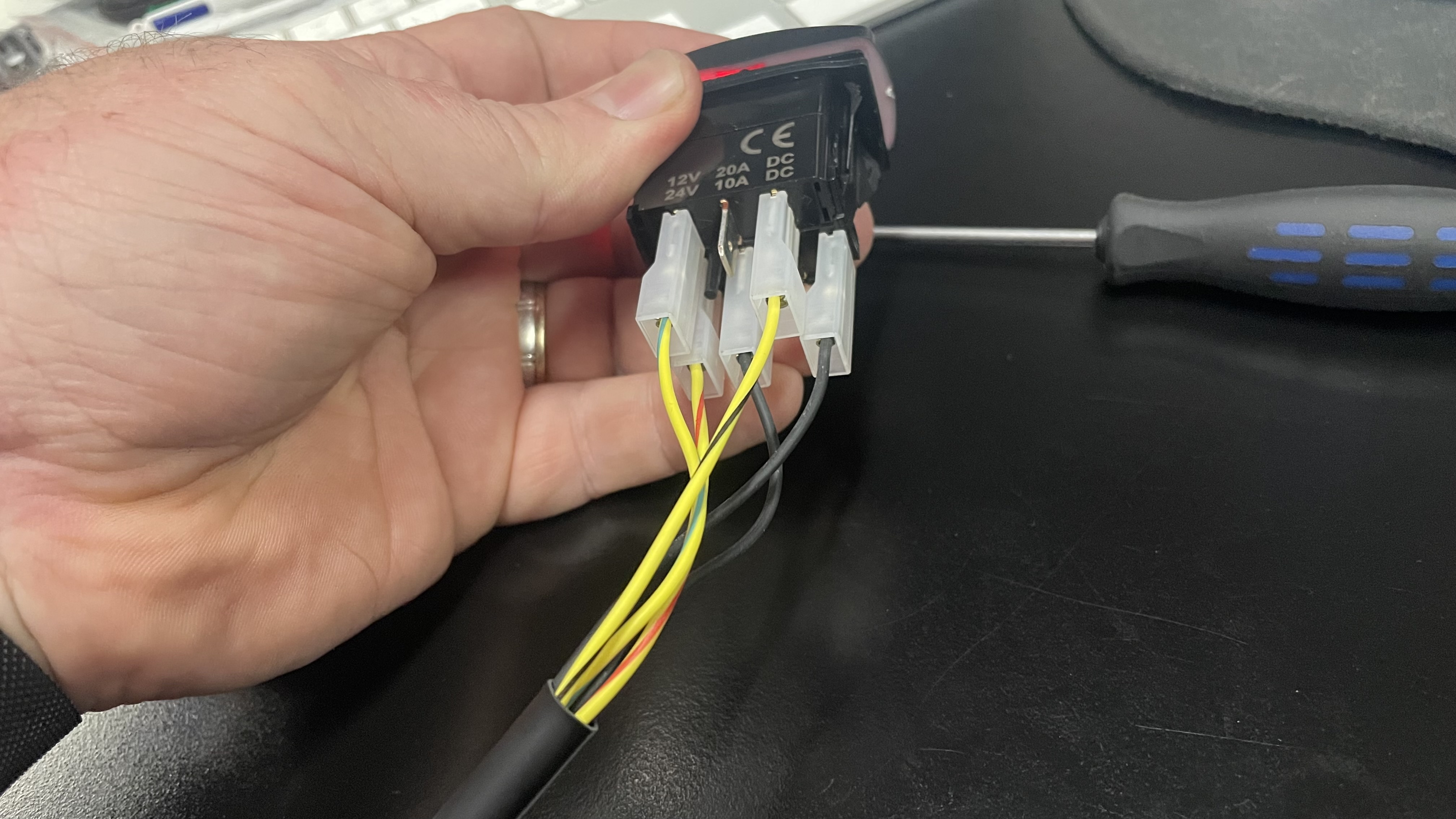

Using a specific Carling Double Momentary switch, you can modify the wiring of the OEM switch loom to provide an alternative Manual TCC switch.

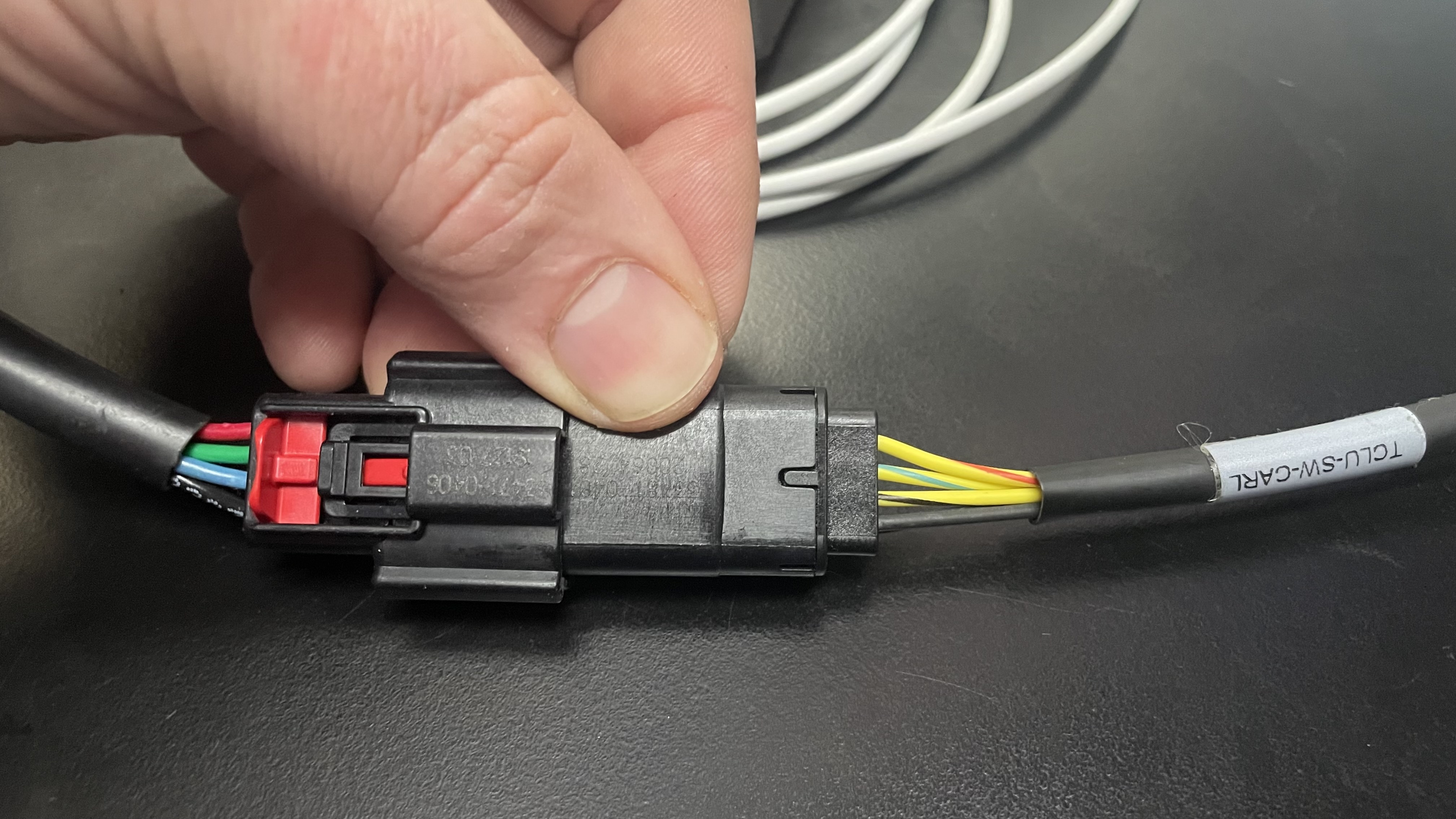

To convert the OEM style switch loom to a Carling Rocker Switch:
| OEM Switch Wiring | Purpose | Carling Switch Loom |
|---|---|---|
| Red | Switch Trigger | Yellow/Red Stripe |
| Green | LED1 - Lockup | Yellow/Blue Stripe |
| Blue | LED2 - TCC | Yellow/Black Stripe |
| Black | Ground | Black |
