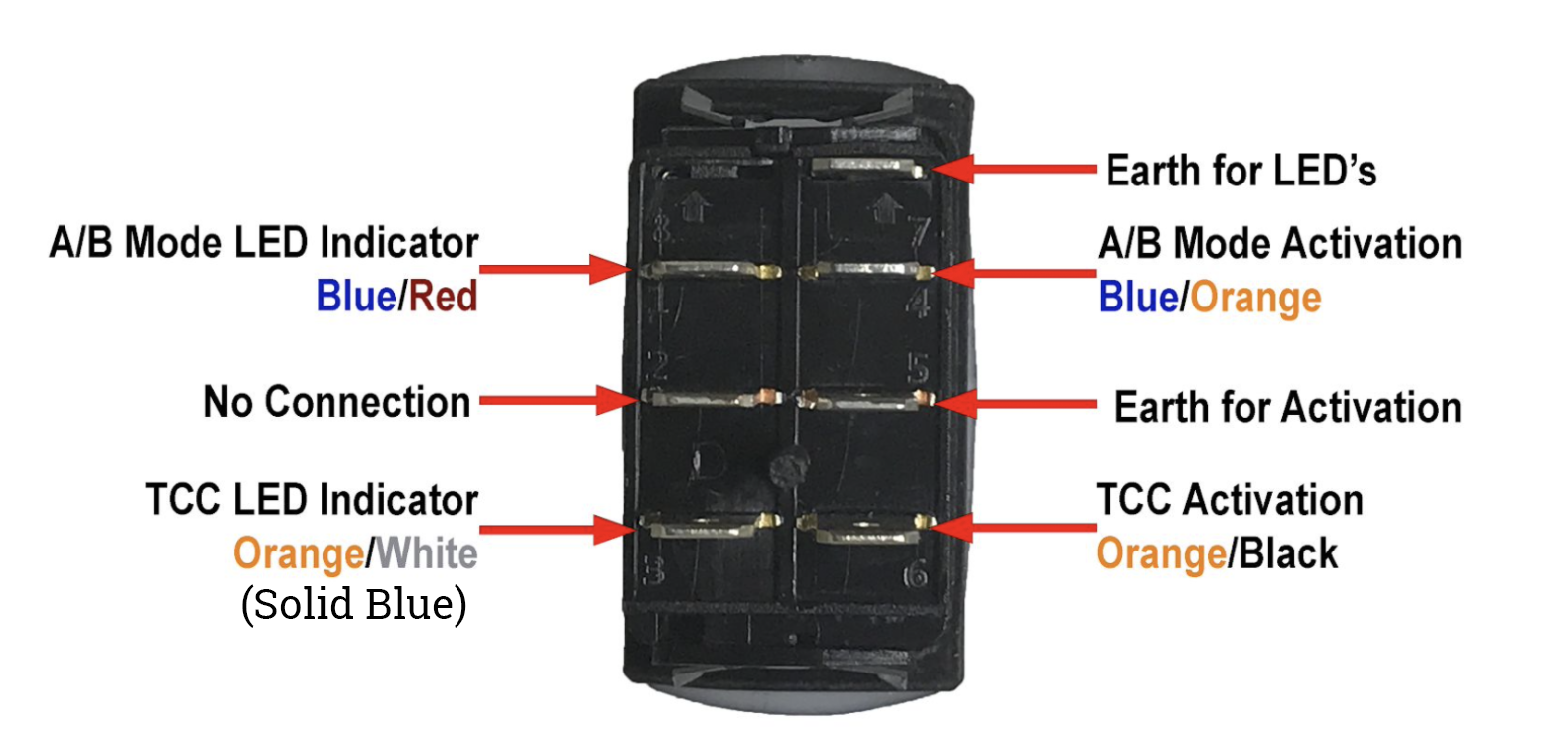

- Remove all wires but the 2 x earth

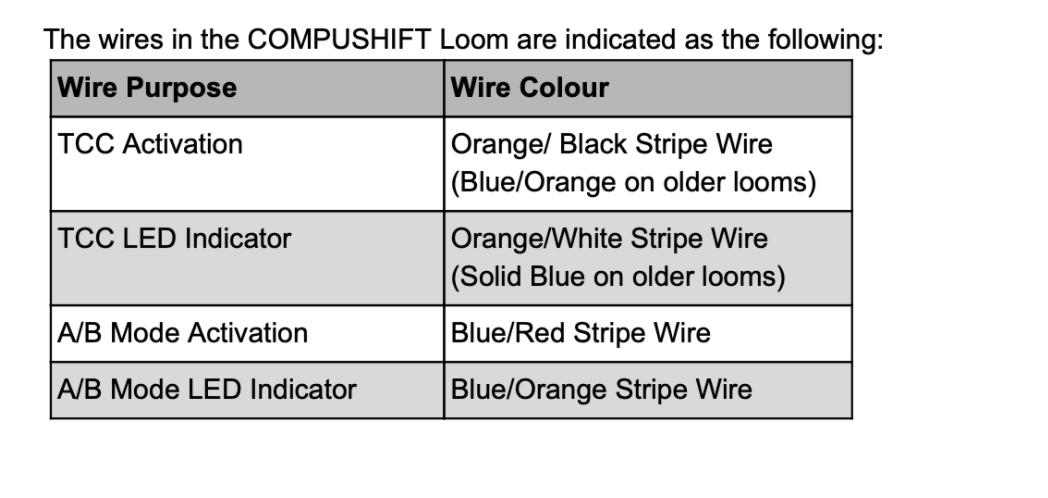

- Identify the Orange/white (or solid blue)
- Identify the Blue/Red - One that has a darker line then the other two

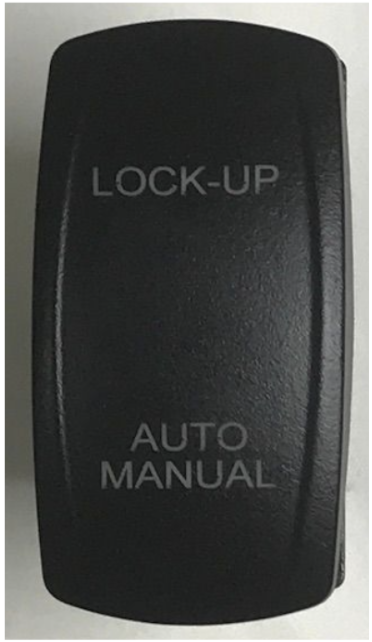

- Put one of the Blue/orange wires on Pin 4 then engage the switch (Press and hold auto manual for 3 seconds) if the TCC engages then swap it to Pin 6 and put other wire on Pin 4
