This article provides the user information about the physical Lock-Up switch installed in the vehicle. The switch may not look the same for all vehicles and the colours may also be difference for each vehicle, however the wording is the important part to reference - LOCKUP will always be LOCKUP and TCC will always be TCC irrespective of position or illumination colour.
State | LOCKUP | TCC | Switch State Image |

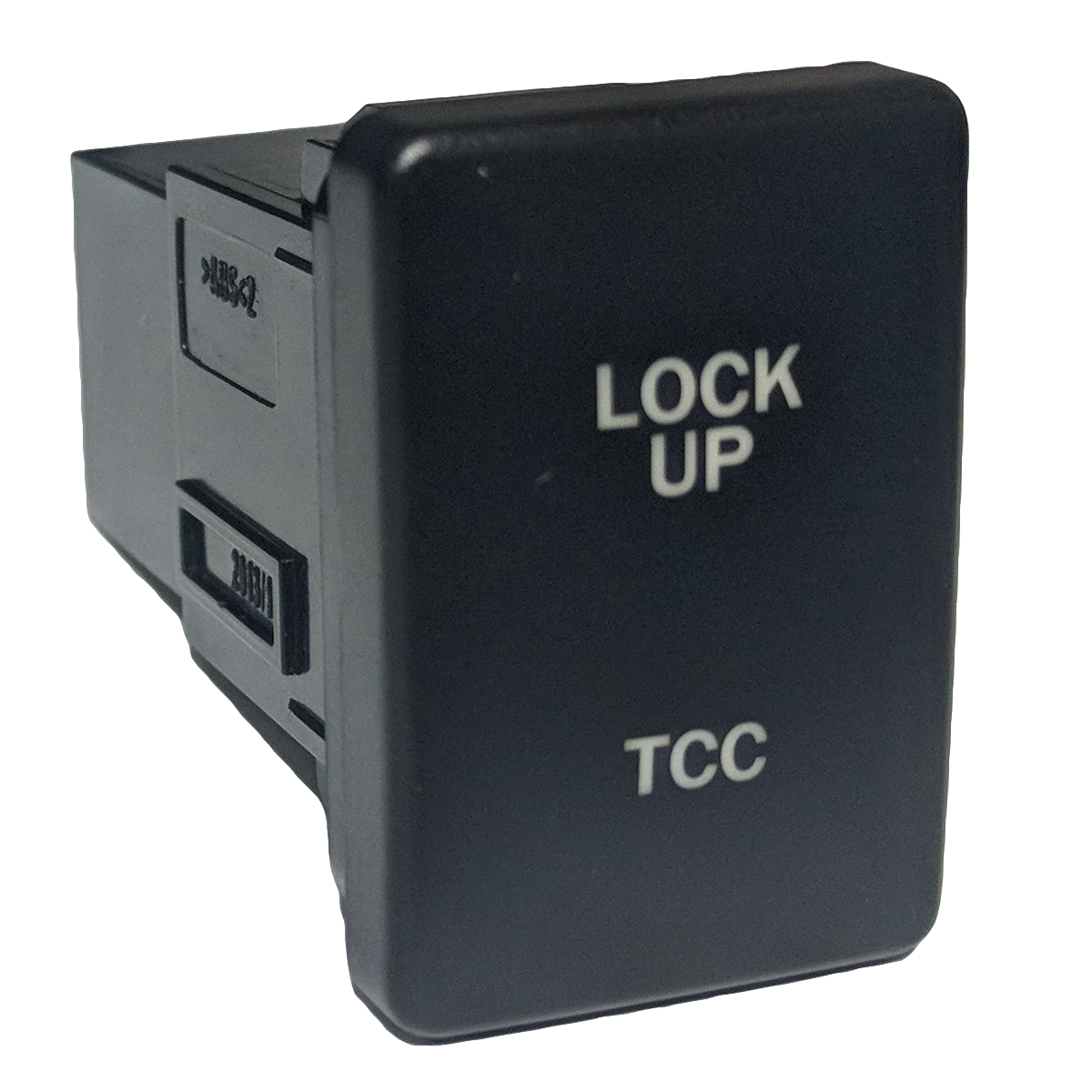

| LockUp Off (Primary Preset) | Off | Off |  |
| LockUp Auto engaged (Primary Preset) | Solid On | Off |  |
| LockUp Manually Engaged | Off | Solid On |  |

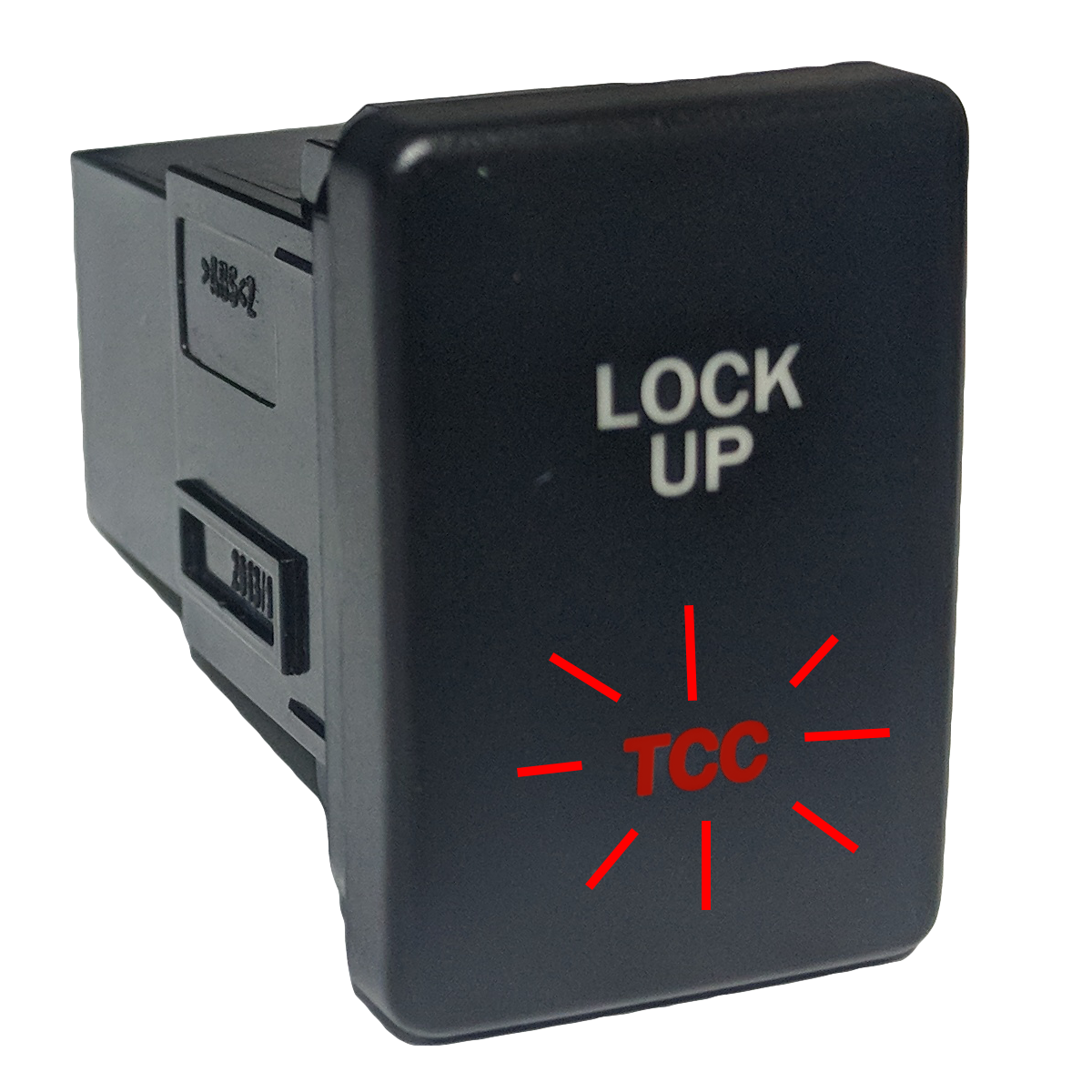

| Secondary Preset Active | Off | Pulsing |  |

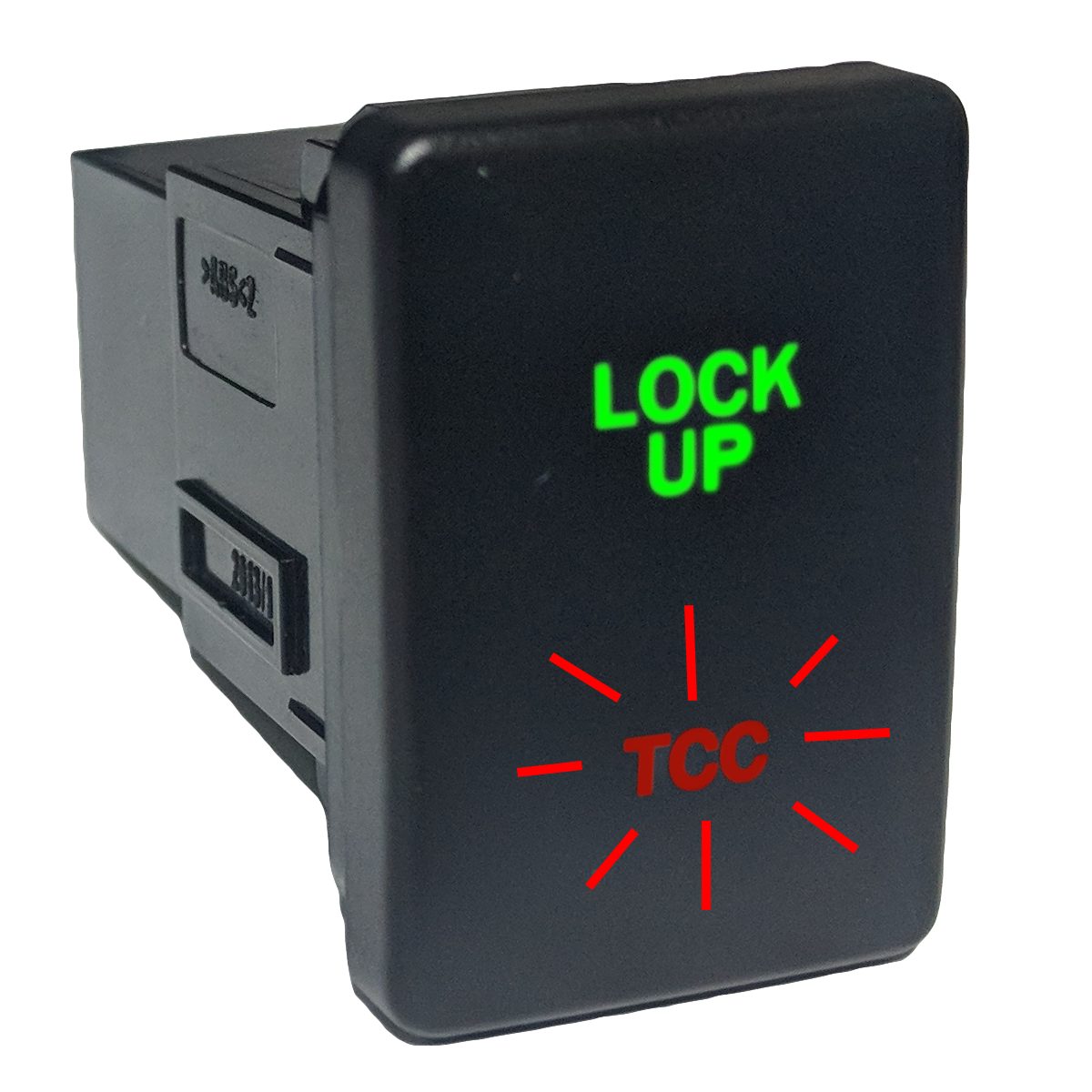

| LockUp Auto Engaged (Seconday Preset) | Solid On | Pulsing |  |
Other items to Note
- LockUp Manual Engagement will always override other states until turned off.
- Primary Preset is always the default mode when starting the vehicle or shifting from Low Range to High Range.
- This information is also available via the Dashboard on the Nomad LockUp App. See this article for information about the Dashboard Widgets
