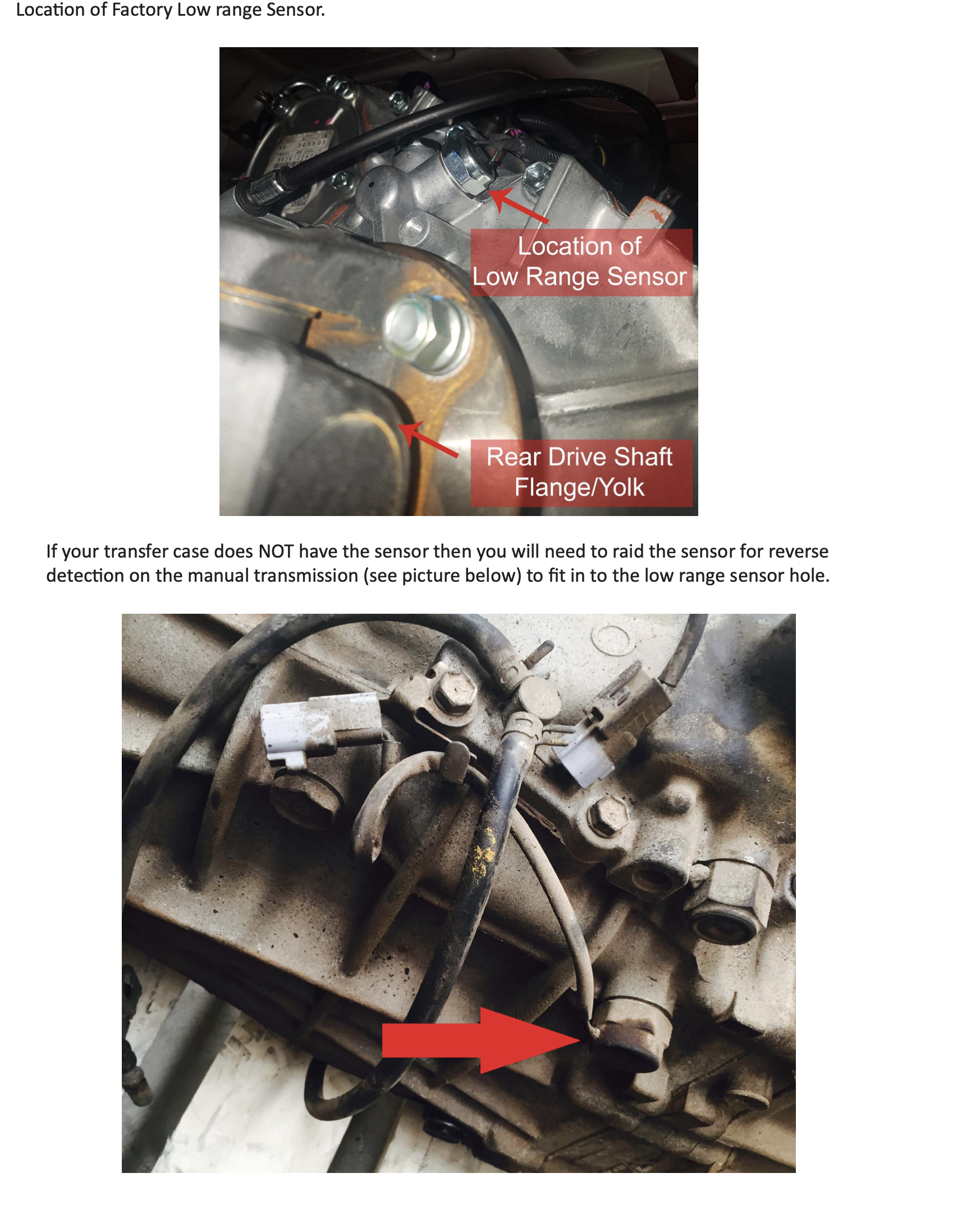

Location of Factory Low Range Sensor on HF1A and HF2A Transfer Case

This information only applies to the HF1A, HF2A and HF2AV transfer cases that are found in the following vehicles:

• Toyota LandCruiser 80 Series (1HD-T, 1HD-FT, 1FZ-FE Engines)
• Toyota LandCruiser 100 Series (All Engines)
• Toyota LandCrusier 105 Series (All Engines)
• Toyota LandCruiser 70 Series (1HD-FTE, 1VD-FTV Engines)

HF1A = Part Time Transfer Case (Positions - 2H, 4H, N, 4L)

HF2A = Full Time Transfer Case with Electronic Centre Diff Lock (Positions - H, N, L)

HF2AV = Full Time Transfer Case with Viscous Coupling and Electronic Centre Diff Lock (Positions - H, N, L)
